Fischer Hollow-ceiling anchor FHY

by Fischer

KES 300
KES 420

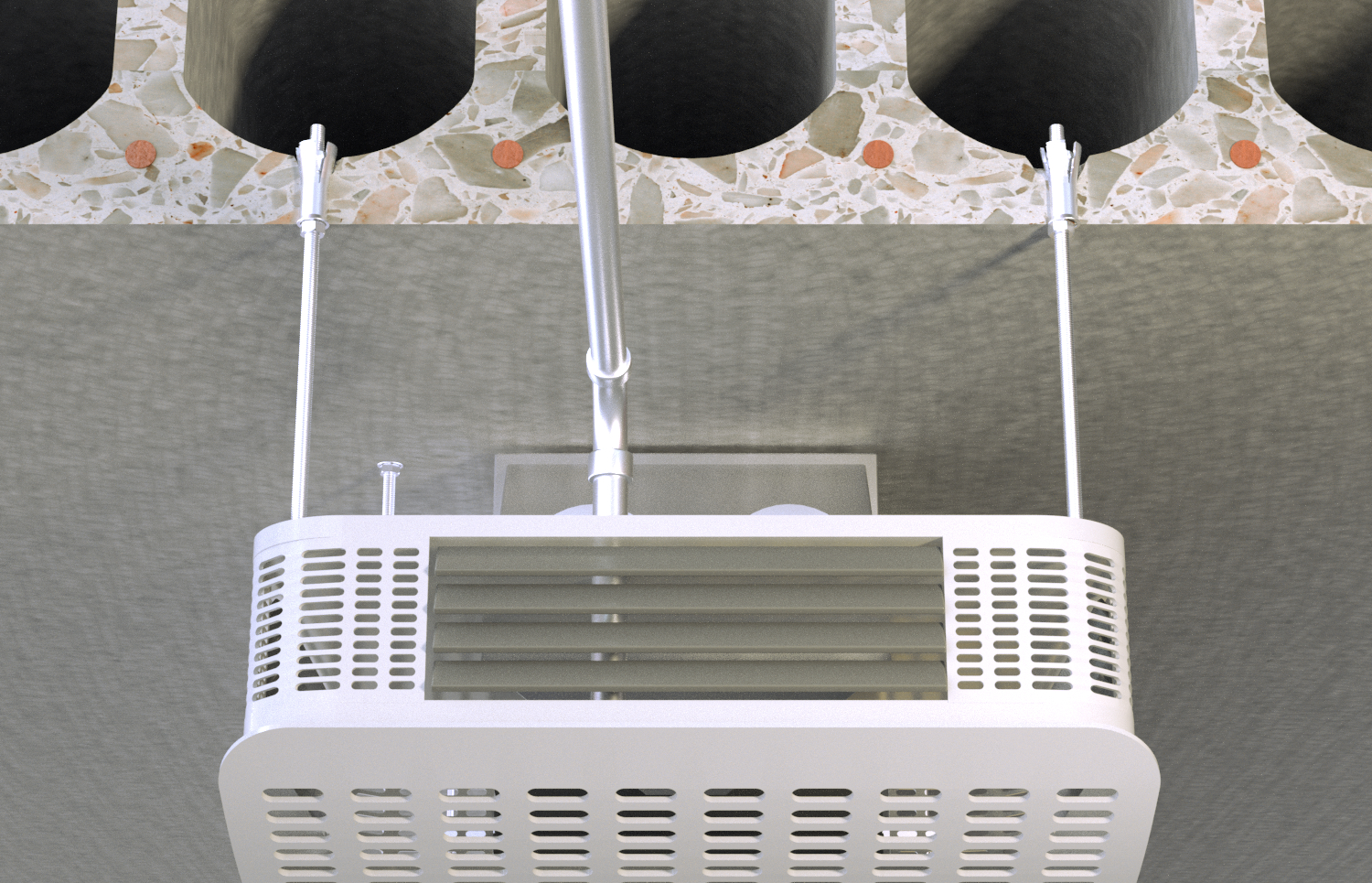

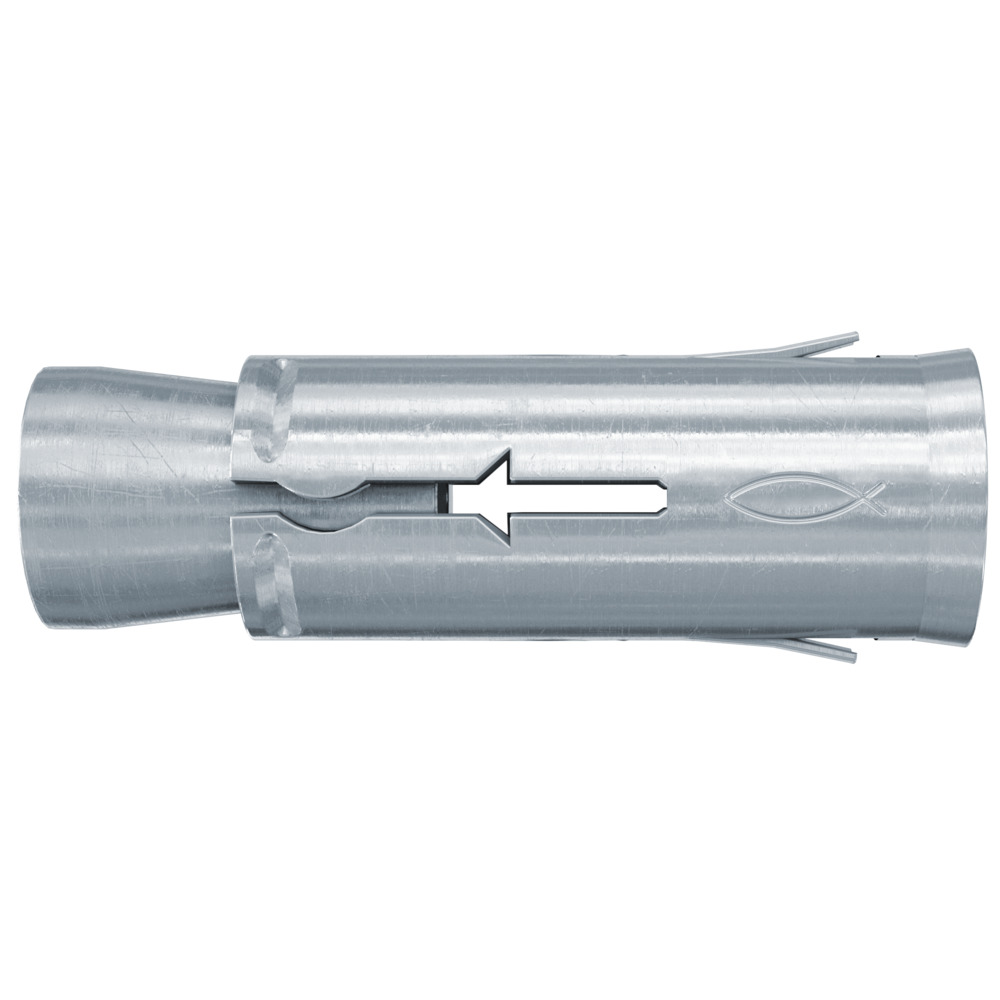

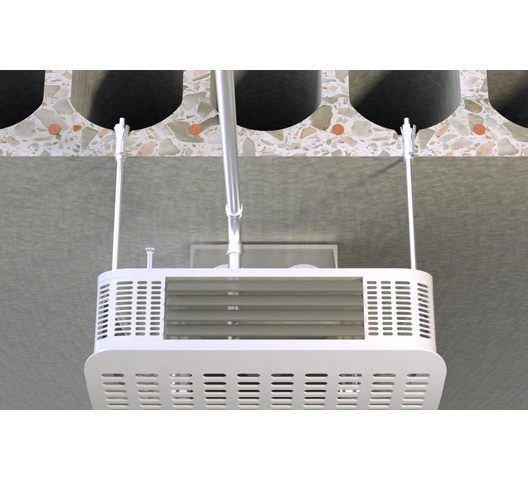

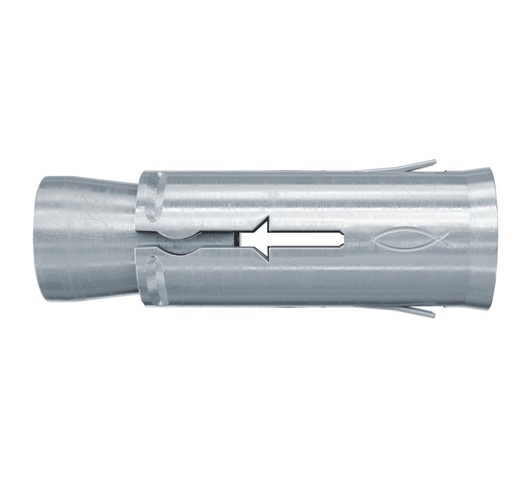

The fischer hollow-ceiling anchor FHY is an internal threaded anchor made of zinc-plated steel. The FHY is set into the drill hole by hand via the pre-positioned installation, and then driven in with the hammer until it is surface-flush with the building material. When applying the torque, the cone is pulled into the expansion sleeve. This expands in the cavity and in solid building materials it expands against the drill hole wall. The fischer hollow-ceiling anchor FHY is ideal for fixing pipelines, cable trays, and air lines in pre-stressed concrete hollow ceilings in indoor areas.

  • Extremely flexible and installation-friendly. The anchor can be used up to 5 cm from the tensioning wire.
  • Expansion in the cavity and in solid building material.
  • Building Authority approval.
  • High flexibility due to using conventional metric screws and threaded rods.
  • Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
UPC30146
Model Number30146
Drill hole Diameter (mm) 12
Anchor Length (mm) 43
SKU30146
UPC30148
Model Number30148
Drill hole Diameter (mm) 16
Anchor Length (mm) 52
SKU30148

Reviews

This product does not have any reviews yet.

Add your review

Description

Applications
  • Pipelines

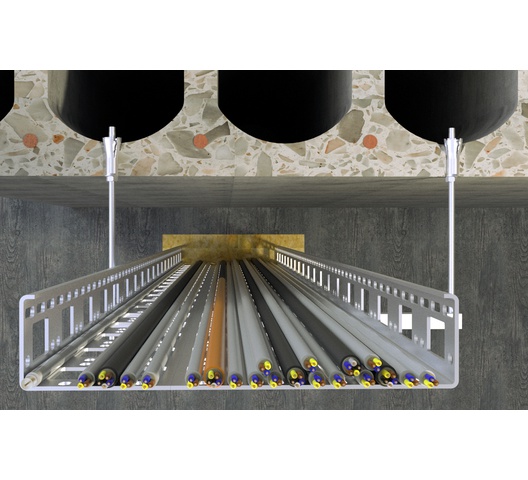

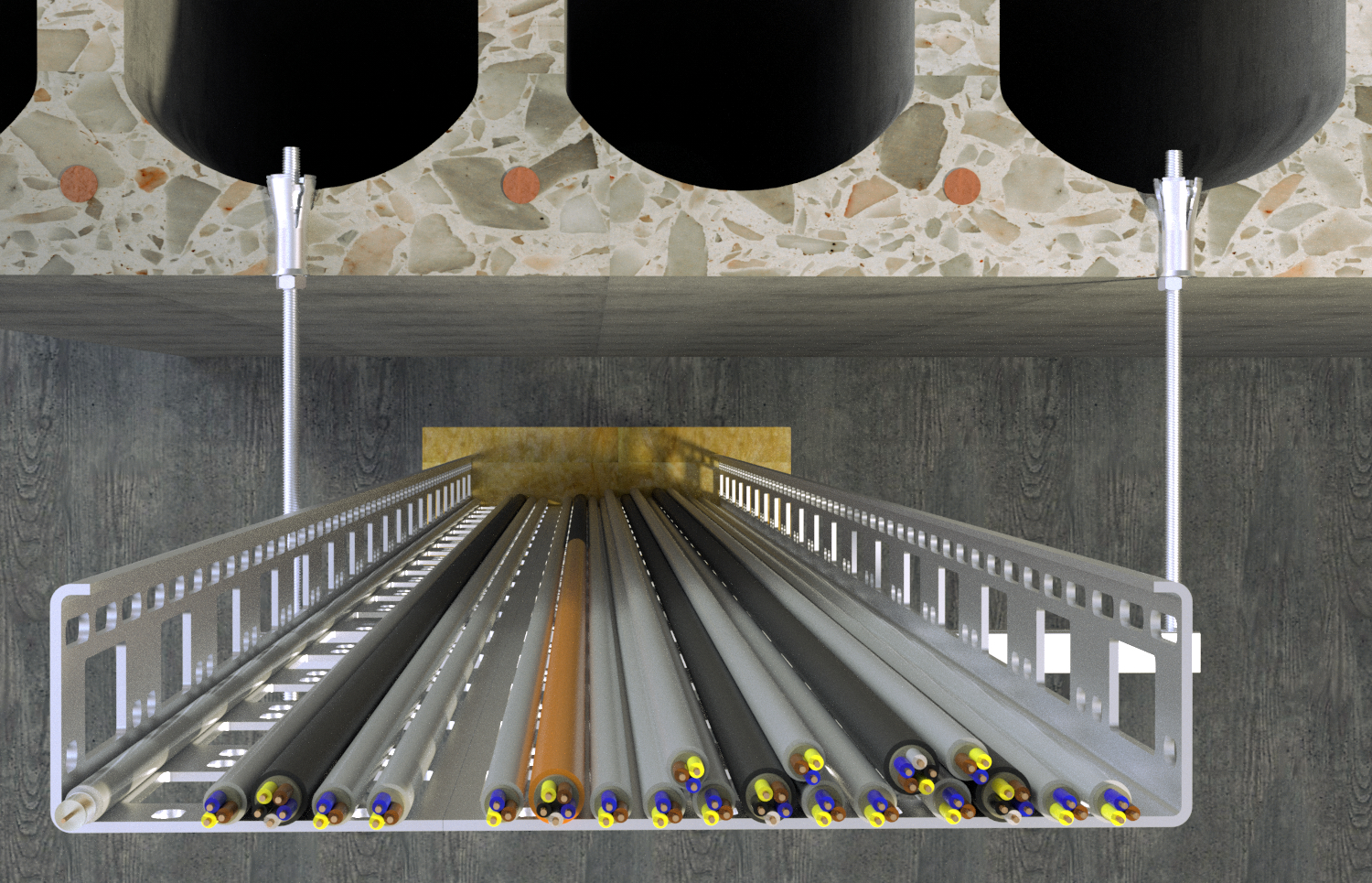

  • Cable trays
  • Ventilation systems
  • Sprinkler systems
  • Suspended ceilings
  • Consoles
  • Steel constructions
  • Timber constructions
Building materials
Approved for:
  • Pre-stressed hollow-core concrete slabs ≥ C45/55

Permission

  • Z-21.1-1711
  • IEA 18_046-1, Z-21.1-1711
