Fischer Nail anchor FNA II (Hook) M6
by Fischer
KES 85

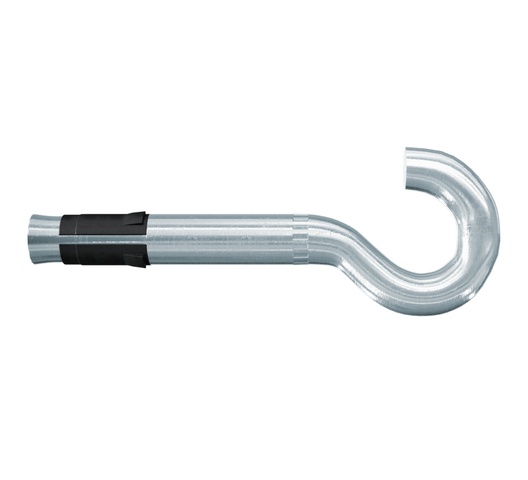

The fischer nail anchor FNA II 6 with hook is made of zinc-plated steel. The FNA II is set in a time-saving manner in the pre-positioned installation with just a few taps of the hammer. The installed FNA II expands automatically under load. The cone is then pulled into the expansion clip and expands it against the hole wall. Above all, the fischer nail anchor FNA II 6 with hook is suitable for fixing air lines and hangers in internal areas.
- Drill diameter: 6mm
- Min. drill hole depth for through fixings: 35mm
- Anchor length: 54mm
- Inner diameter of the hook/eye: 10mm
- Anchor length: 54mm
| UPC | 44126 |
|---|---|
| Model Number | 44126 |
| Drill hole Diameter (mm) | 6 |
| Anchor Length (mm) | 54 |
| SKU | 44126 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Applications
- Fire protection plates
- Fire protection boards
- Ventilation systems
- Wire and Nonius hangers
- Mounting rails
- Metal clamps
- Substructures made of wood and metal
Building materials
Approved for:
- Concrete C12/15 to C50/60, cracked, for multiple fixings of non-structural applications
- Solid sand-lime brick
- Natural stone with dense structure
- Prestressed hollow-core concrete slabs
Permission
- ETA-06/0175
- DoP 0235
