Fischer Nail Anchor FNA II ( with Thread & Nut) M6
by Fischer
The fischer nail anchor FNA II 6 with thread and flange nut is made of zinc-plated steel. The FNA II is set in a time-saving manner in the push-through or pre-positioned installation with just a few taps of the hammer. The installed FNA II expands automatically under load. The cone is then pulled into the expansion clip and expands it against the hole wall. Above all, the fischer nail anchor FNA II with thread and flange nut is suitable for fixing metal clamps for conduits and pipes in internal areas.
Hammerset installation saves time.
No reinforcement hits due to low anchorage depth This saves time and costs during series installation.
Expansion clip provides a firm hold.
ETA approval for multiple fixings.
- ETA-approved
- Drill diameter d0 6mm
- Min. drill hole depth for through fixings h2 45mm
- Anchor length l 55mm
- Max. fixture thickness t fix 10mm
- Thread M M 6
- Width across nut SW 10mm
| UPC | 46022 |
|---|---|
| Model Number | 46022 |
| Drill hole Diameter (mm) | 6 |
| Anchor Length (mm) | 55 |
| SKU | 46022 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
- Fire protection plates
- Fire protection boards

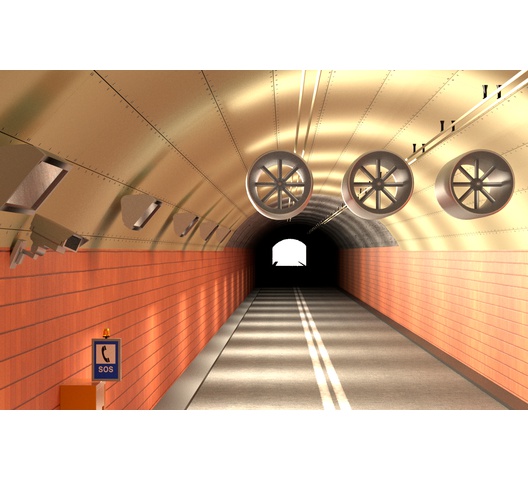

- Ventilation systems
- Wire and Nonius hangers

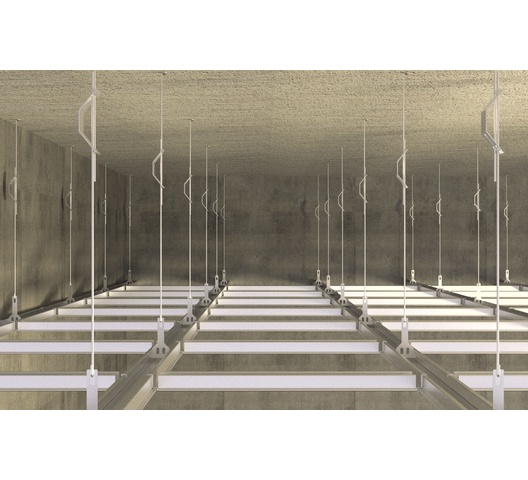

- Mounting rails
- Metal clamps
- Substructures made of wood and metal
- Concrete C12/15 to C50/60, cracked and non-cracked
- For multi-point fixings of non-load-bearing systems
Permission
- ETA-06/0175
- ETA-06/0175
- DoP 0235
