Fischer Sleeve Anchor FSA-S (Bolt Type)
by Fischer
KES 125
KES 125
KES 210
KES 260
KES 300
KES 175
KES 175

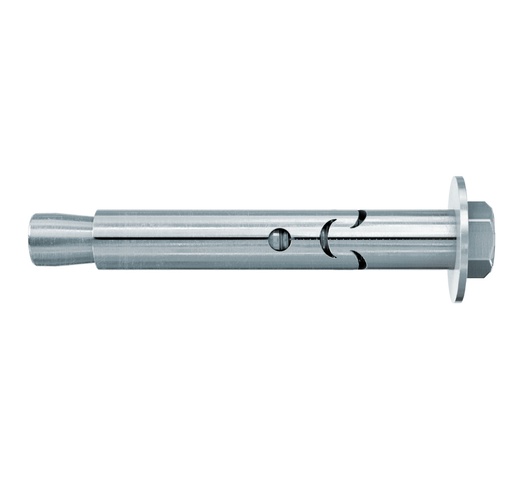

The fischer sleeve anchor FSA-S is a zinc-plated steel anchor with hexagonal screw for structural fixings. The FSA-S is set in the time-saving through-type installation. When tightening, the cone is pulled into the expansion sleeve and expands it against the hole wall. The recesses act as a crumple zone to take the torque slippage. The fixture is therefore pulled towards the anchoring base. The fischer sleeve anchor FSA-S is ideal for fastening fixings that are not relevant in safety terms such as consoles, handrails, or cable trays.
- Simple alignment due to optimised anchor geometry, even in narrow spaces.
- Surface flush removal due to detachable screw connection.
- With hexagon screw.
| UPC | 68520 |
|---|---|
| Model Number | 68520 |
| Drill Diameter (mm) | 8 |
| Anchor Lenght (mm) | 64 |
| Min. Drill Hole Depth (mm) | 65 |
| Washer (outer diameter x thickness) (mm) | 12 x 1.6 |
| SKU | 68520 |
| UPC | 68523 |
|---|---|
| Model Number | 68523 |
| Drill Diameter (mm) | 10 |
| Anchor Lenght (mm) | 65 |
| Min. Drill Hole Depth (mm) | 65 |
| Washer (outer diameter x thickness) (mm) | 24 x 2.1 |
| SKU | 68523 |
| UPC | 68525 |
|---|---|
| Model Number | 68525 |
| Drill Diameter (mm) | 10 |
| Anchor Lenght (mm) | 115 |
| Min. Drill Hole Depth (mm) | 115 |
| Washer (outer diameter x thickness) (mm) | 24 x 2.1 |
| SKU | 68525 |
| UPC | 68527 |
|---|---|
| Model Number | 68527 |
| Drill Diameter (mm) | 12 |
| Anchor Lenght (mm) | 91 |
| Min. Drill Hole Depth (mm) | 90 |
| Washer (outer diameter x thickness) (mm) | - |
| SKU | 68527 |
| UPC | 68528 |
|---|---|
| Model Number | 68528 |
| Drill Diameter (mm) | 12 |
| Anchor Lenght (mm) | 116 |
| Min. Drill Hole Depth (mm) | 115 |
| Washer (outer diameter x thickness) (mm) | - |
| SKU | 68528 |
| UPC | 68524 |
|---|---|
| Model Number | 68524 |
| Drill Diameter (mm) | 10 |
| Anchor Lenght (mm) | 90 |
| Min. Drill Hole Depth (mm) | 90 |
| Washer (outer diameter x thickness) (mm) | 24 x 2.1 |
| SKU | 68524 |
| Drill Diameter (mm) | 12 |
|---|---|
| Anchor Lenght (mm) | 76 |
| Min. Drill Hole Depth (mm) | 75 |
| Washer (outer diameter x thickness) (mm) | - |
| SKU | 68526 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Applications
- Handrails
- Consoles
- Ladders
- Cable trays
- Gates
- Façades
- Temporary or structural fixings
Building materials
Suitable for:
- Concrete C12/15 to C20/25, non-cracked
- Natural stone with dense structure
Advantages
- The optimised geometry minimises setting energy and enables the use in extremely narrow spaces. This allows for user-friendly installation.
- The anchor design makes it possible to use different head shapes for flexible design solutions: Hexagon head (type S), bolt version with nut and washer (type B).
- The detachable screw connection allows for surface flush removal.
