Fischer threaded rod FIS A gvz steel grade 5.8
by Fischer
KES 200
KES 670
KES 310
KES 625
KES 675
KES 280
KES 1,200

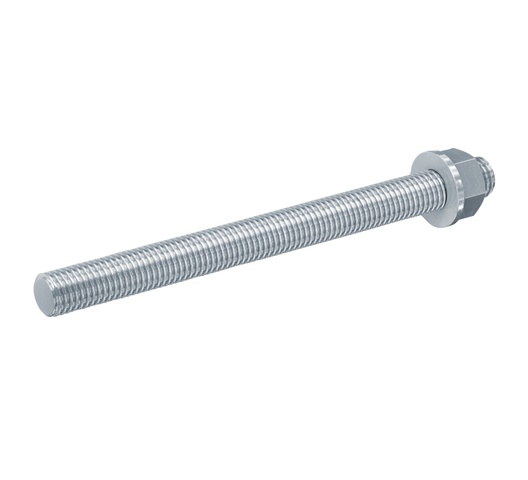

The fischer threaded rod FIS A is made from zinc-plated, steel grade 5.8. The threaded rod is a system component for the various fischer injection mortars. Together with the injection mortars, the fischer threaded rods are suitable and approved for all subsurfaces. A thorough cleaning of the drill hole is recommended for the maximum load-bearing capacity of the system. The system, made from zinc-plated threaded rods in conjunction with fischer injection mortars, is suitable and approved for fixings in dry interiors.
- The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements, thus allowing for a wide range of applications.
- The wide range of approved threaded rods FIS A from M6 to M30 allows for various applications.
| UPC | 90278 |
|---|---|
| Model Number | 90278 |
| Drill hole Diameter (mm) | 12 |
| Effective anchoring Depth (mm) | 60 - 96 |
| SKU | 90278 |
| UPC | 90279 |
|---|---|
| Model Number | 90279 |
| Drill hole Diameter (mm) | 12 |
| Effective anchoring Depth (mm) | 60 - 116 |
| SKU | 90279 |
| UPC | 90284 |
|---|---|
| Model Number | 90284 |
| Drill hole Diameter (mm) | 14 |
| Effective anchoring Depth (mm) | 70 - 143 |
| SKU | 90284 |
| UPC | 90288 |
|---|---|
| Model Number | 90288 |
| Drill hole Diameter (mm) | 18 |
| Effective anchoring Depth (mm) | 80 - 154 |
| SKU | 90288 |
| UPC | 90289 |
|---|---|
| Model Number | 90289 |
| Drill hole Diameter (mm) | 18 |
| Effective anchoring Depth (mm) | 80 - 179 |
| SKU | 90289 |
| UPC | 44971 |
|---|---|
| Model Number | 44971 |
| Drill hole Diameter (mm) | 14 |
| Effective anchoring Depth (mm) | 70 - 103 |
| SKU | 44971 |
| UPC | 90292 |
|---|---|
| Model Number | 90292 |
| Drill hole Diameter (mm) | 24 |
| Effective anchoring Depth (mm) | 90 - 220 |
| SKU | 90292 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Applications
- Approved anchorings with Injection mortars FIS SB, FIS EM, FIS EB, FIS PM, FIS V, FIS VL, FIS P Plus and FIS GREEN
- Anchorings without approval with Injection mortar FIS P
Building materials
- In connection with several fischer injection mortars the threaded rod FIS A is approved or suitable for different building materials.
Permission
- ETA-02/0024, ETAG 001-5
- ETA-20/0603
- DoP 0188
- DoP No. 0007
- DoP No. 0072
- DoP No. 0094
