Fischer threaded rod RG gvz steel grade 5.8
by Fischer

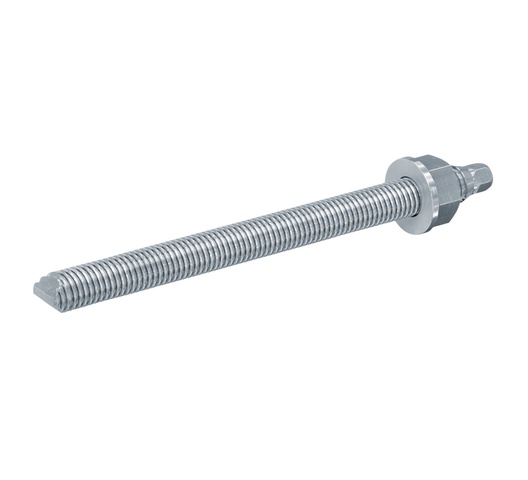

The fischer rod anchor RG M is made of zinc-plated steel with a grade of 5.8. The anchor rod is a systems accessory for various fischer mortar cartridges or injection mortars. Application with pre-portioned mortar cartridges is especially cost-effective for individual fixings. During mounting with the resin capsule, set the fischer anchor rod RG M through rotating and hitting motions with a hammer drill. The capsule is destroyed during the setting process, which mixes and activates the mortar compound. During mounting with injection mortars, the anchor rod is pushed into the drill hole manually by lightly rotating it. The system is particularly suitable for cost-effective fixing of machines, steelwork constructions, and supporting feet in internal areas.
- The wide range of the RG M from M8 to M30 opens up a wide range of applications and therefore offers great flexibility.
- The wide range of approved steel types for RG M allows for use in all corrosion resistance classes and offers the best possible application safety.
UPC | 50258 |
---|---|
Model Number | 50258 |
Drill hole Diameter (mm) | 14 |
Max. Fixture Thickness (mm) | 26 |
Effective anchoring Depth (mm) | 110 |
SKU | 50258 |
UPC | 50287 |
---|---|
Model Number | 50287 |
Drill hole Diameter (mm) | 18 |
Max. Fixture Thickness (mm) | 125 |
Effective anchoring Depth (mm) | 8 |
SKU | 50287 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
- Approved anchorings with Resin capsules RSB and RM II
- Approved anchorings with Injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS GREEN and FIS P Plus
- In connection with the fischer resin capsules approved or suitable for cracked and non-cracked concrete.
- In connection with several fischer injection mortars approved or suitable for different building materials.
Permission
- ETA-02/0024, ETAG 001-5
- ETA-20/0603
- DoP 0188
- DoP No. 0007
- DoP No. 0072
- DoP No. 0094
